Specs IC Switch

Name: Specs IC Switch
SKU: 10000114

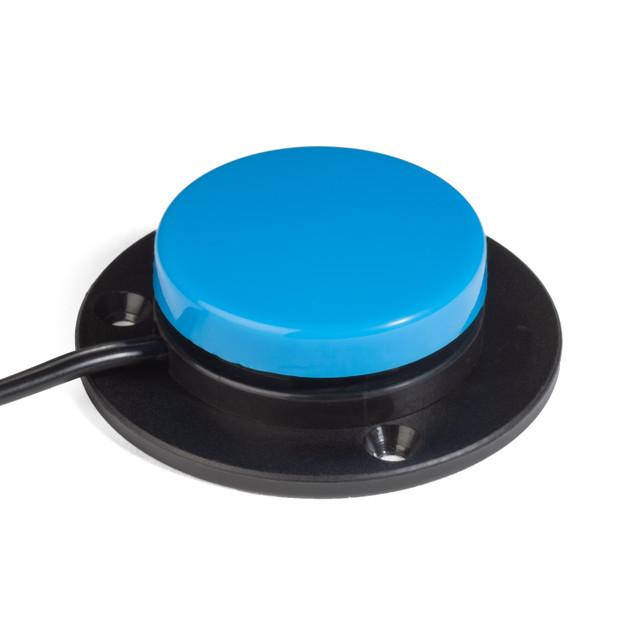

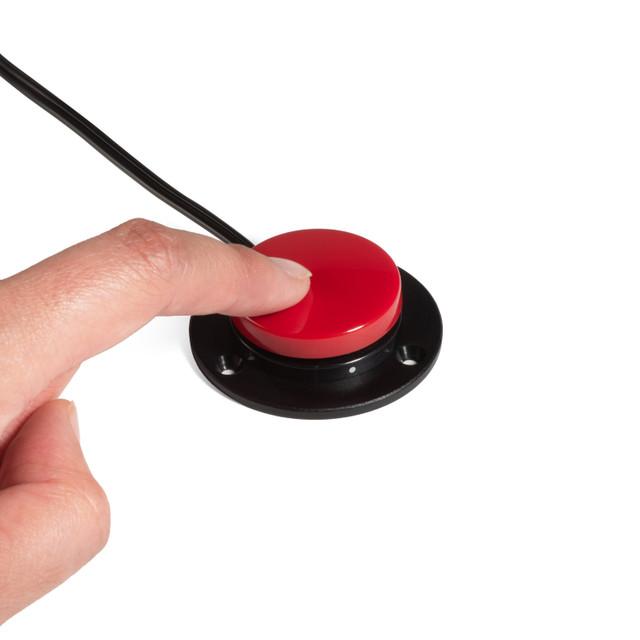

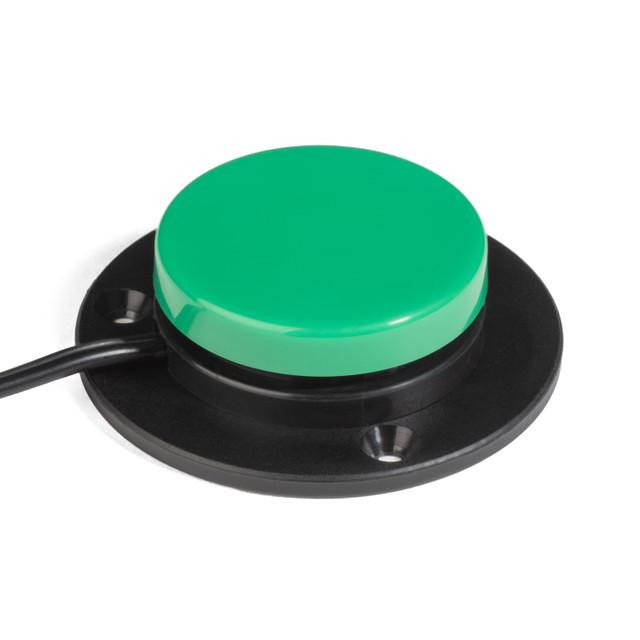

A compact wired switch featuring a 3.5 cm diameter activation surface that provides an auditory click and tactile feedback. Requires 111g of force to activate.

SKU: 10000114 Category: Standard / Button Switches Tags: AbleNet, Switch

Description
Additional information

Features

The Specs IC switch maintains the compact 3.5 cm activation surface as previous versions of Specs, perfect for mounting or wearing as needed.

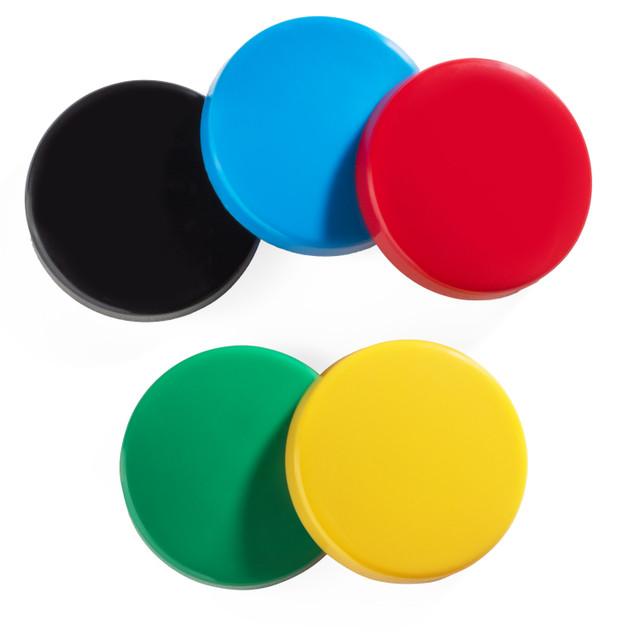

Now featuring interchangeable switch caps in 5 vibrant colors, the Specs IC allows you to personalize the look to fit the user or environment.
Each switch includes a space-saving flush base and a strap base for flexible mounting options.
A 24-inch (~60 cm) strap is included.

Change Tops

With the included tool, insert above the white dot and turn the top counterclockwise at the same time.

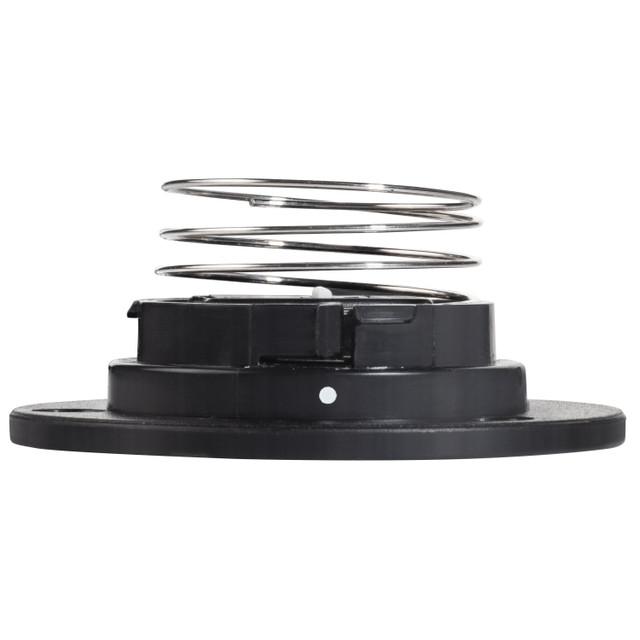

Lift the top leaving the spring in place.

Place new top over the spring, push down and turn clockwise.

Video

Support

Quick Start

Specs Switch Quick Start Guide (PDF)

Open in new tab

Instructions

Specs Switch Instructions for Use (PDF)

Open in new tab

Dimensions	5.0 × 5.0 × 1.6 cm
Colour	Black, Red, Yellow, Green, Blue
Switch Type	Mechanical
Connection Type	3.5mm (Audio)
Cord Length	183 cm
Activation	Type: Pressure Surface: 3.5 cm diameter Activating Force: 111 g Travel (before Activation): 0.074 cm Feedback: Auditory click, Tactile
